Product Details:
Payment & Shipping Terms:
|
Thickness: | 2mm-200mm | Size: | 1000mmX2000mm |
---|---|---|---|
Material: | PE | Density: | 0.96g/cm3 |
1.Very Tough
2.Very low water absorption
3.Good sliding properties
4.Resistant to dilute acids, cleaning agents...
Main properties:
Characteristic:
Relative density (g/cm3) |
0.920.97 |
Brittle temperature () |
<-120 |
Water absorption (%) |
<0.01 |
Linear expanding coefficient (X10-5k-1) |
1213 |
In-process shrinkage (%) |
1.55.5- |
Thermal conductivity (W/(m.k)) |
0.44 |
Tensile strength (Mpa) |
21--37 |
Volume resistivity (Ω.cm) |
61015 |
Breaking extension (%) |
>880 |
Dielectric constant (106HZ) |
2.34-2.35 |
Bending strength (Mpa) |
11 |
Dielectric dissipation factor |
0.0003 |
Compressive strength (Mpa) |
10 |
Dielectric strength/(KV/mm) |
>20 |
Notch impact strength (Kj/ m2) |
4070 |
Arc resistant/s |
115 |
Rockwell hardness |
R70 |
Oxygen index (%) |
-20 |
Heat-formation temperature () |
75 |
|
|
Specification

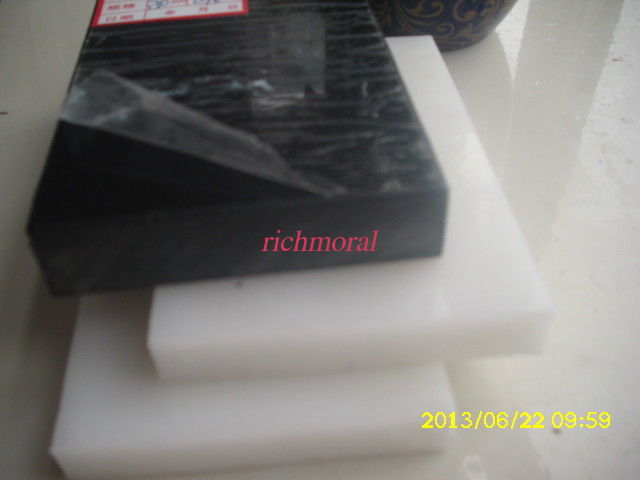

HDPE sheet |
||||
Thickness(mm) |
Length X width(mm) |
Color |
Minimum order |
Density(g/cm3) |
2-100mm |
1200X2400mm or1000mm |
White, black or as required |
500KG |
0.96-0.98 |
HDPE rod |
||||
Diameter(mm) |
Length(m) |
Color |
Minimum order |
Density(g/cm3) |
10-300mm |
1M or as required |
White, black or as required |
500KG |
0.98 |
